參考標準： GB/T 50312、YD/T 1019、ISO/IEC 11801、IEC 61156-1
導體：23AWG實心銅導體
銅芯直徑：0.60±0.03mm

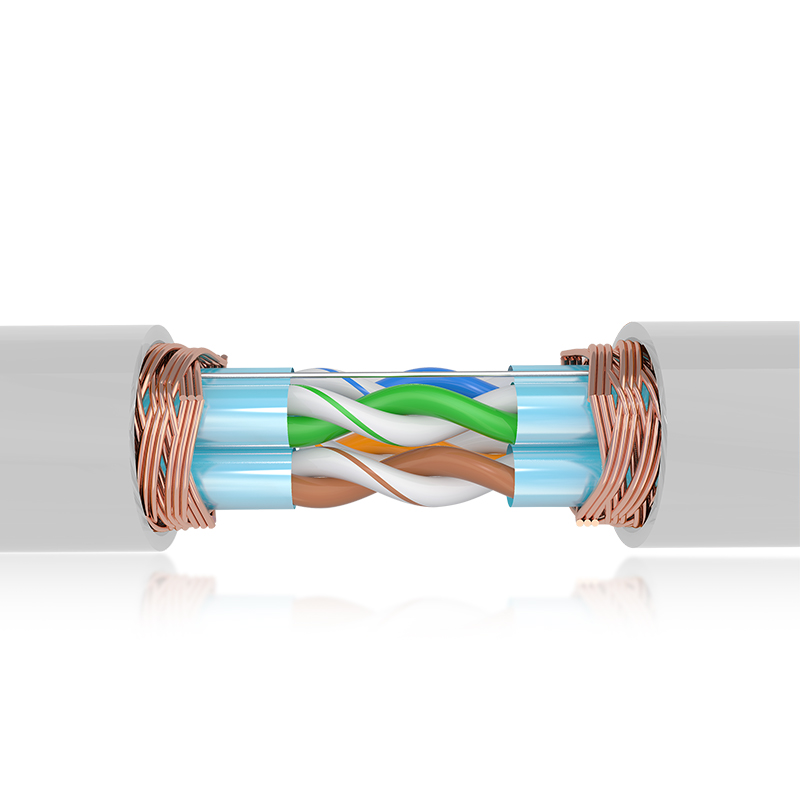

屏蔽結構：S/FTP 銅網(wǎng)總屏蔽+鋁箔縱包線對屏蔽
撕裂繩：帶有非吸濕性，非金屬
帶寬及應用：支持600MHZ，滿足IEEE 802.3 10GBASE-T應用、具有豐富的萬兆通道性能余量
絕緣：實心或發(fā)泡高密度聚乙烯
排流線：鍍錫排流線
護套： LSZH
護套近似外徑：8.0±0.3mm
工作溫度:-20～+60℃
直流電阻（最大）：9.3Ω/100m
絕緣電阻：>5000MΩ·km（+20℃ DC100-500V）
時延差：≤45ns/100m
傳輸特性：
Technical Performance(100m): |
Frequency (MHz) | RL ≥DB | ATT ≤DB | NEXT ≥DB | ATT ≤NS | Frequency (MHz) | PSNEXT ≥DB | ELFEXT ≥DB | PSELFEXT ≥DB |
1.0 | 20.0 | 2.0 | 78.0 | 570 | 1.0 | 75.0 | 78.0 | 75.0 |
4.0 | 23.0 | 3.74 | 78.0 | 552 | 4.0 | 75.0 | 78.0 | 75.0 |
8.0 | 24.5 | 5.24 | 78.0 | 546.7 | 8.0 | 75.0 | 75.9 | 72.9 |
10.0 | 25.0 | 5.86 | 78.0 | 545.4 | 10.0 | 75.0 | 74.0 | 71.0 |
16.0 | 25.0 | 7.41 | 78.0 | 543.0 | 16.0 | 75.0 | 69.9 | 66.9 |
20.0 | 25.0 | 8.29 | 78.0 | 542.0 | 20.0 | 75.0 | 68.0 | 65.0 |
25.0 | 24.3 | 9.29 | 78.0 | 541.2 | 25.0 | 75.0 | 66.0 | 63.0 |
31.25 | 23.6 | 10.41 | 78.0 | 540.4 | 31.25 | 75.0 | 64.1 | 61.1 |
62.5 | 21.5 | 14.88 | 75.5 | 538.6 | 62.5 | 72.5 | 58.1 | 55.1 |
100 | 20.1 | 19.02 | 72.4 | 537.6 | 100 | 69.4 | 54.0 | 51.0 |
150 | 18.9 | 23.56 | 69.8 | 536.9 | 150 | 66.8 | 50.2 | 47.2 |
200 | 18.0 | 27.47 | 67.9 | 536.5 | 200 | 64.9 | 48.0 | 45.0 |
250 | 17.3 | 30.97 | 66.4 | 536.3 | 250 | 63.4 | 46.0 | 43.0 |
300 | 17.3 | 34.19 | 65.2 | 536.1 | 300 | 62.2 | 44.5 | 41.5 |
600 | 17.3 | 50.10 | 60.7 | 535.5 | 600 | 57.7 | 38.4 | 35.4 |
